Implement Google Sign-In(OAuth) in your Angular App in under 15 minutes
Learn how to implement Google Sign-In in your Angular App in under 15 minutes. We'll build an App with routing and Firebase Authentication and follow all the best practices while doing it.
My dear friend Martina and I both love cats a lot. One fine day while we were talking about collaborating on something, we came up with a really crazy but interesting idea to create KittyGram - a super-minimal Instagram Clone that allows uploading only Cat Photos. This is what this article about. We'll have a series of articles where we'll create KittyGram.
For the scope of this article, we'll mainly implement Google Sign-In and routing. I actually have a YouTube Playlist that you can refer to regarding Firebase just in case.
This article is intended for an audience with mixed experience levels. I've still added a TL;DR; below as a precautionary measure, in case you're just interested in a specific section.
- Not a fan of reading?
- Project Overview
- Setting up a Firebase Project
- Setting up an Angular App
- Implementing the Angular App
- Bringing it all together with Routing
- Next Steps
- Closing Notes
Not a fan of reading?
Ah! You're just like me. I also find it difficult to understand things just by reading them. Worry not! I've got you covered with a video implementing this App along with the explanation.
Watch this Pair Programming video where Martina and I implement this App while explaining things along the way.
This video is a part of @PairAngular, a super awesome YouTube Channel where @Martina, and I will host more pair programming videos like the one above. Like what you see? Subscribe to the PairAngular YouTube Channel to stay in the loop for more such sessions in the future.
Since this is a super-minimal Instagram Clone, we'll not really focus on very specific aspects/features of Instagram. We just need a way for the user to be able to:
- Login via Google and Logout.
- Post an image of cats - CREATE.
- See cat images posted by other users and react on them(any number of times they want) - FEED.
Since in this article, we're only focusing on implementing Google Sign-In, we'll just use placeholder images for the CREATE and FEED features.
Once this part is implemented, it should look and react something like this:
As you can clearly see from the video above there are different aspects to the App.
From the UI perspective, we'll need a
HeaderComponent, and a
ProfileCardComponent. We'll be using Angular Material as well in here for most of these components.
From the routing perspective, we have a
/create route and a
/feed route. We also don't want to allow an unauthorized user to access the
/create route. So we'll need to guard the
"How would we implement Google Sign-In thought?" you might ask. Handling OAuth flow, token lifecycle, and integration with Google APIs can be pretty complex.
But don't you worry about managing all those things on your own. Google has black-boxed this whole complexity and exposed it as a service that we can leverage with minimal efforts. The service is called Firebase Authentication and that's what we'll be using for this application. For a quick introduction to Firebase Authentication check out this video.
Alright! So now that we have an overview of the whole application and the parts that it will have, let's start working on building this thing from scratch.
Setting up a Firebase Project
To use Firebase Authentication, we'll need to set up a Firebase Project. You'll need a Firebase Account for that which you can create by just logging in to Firebase Console with your Google Account.
Follow this short 1ish-minute video to learn how to set up the Firebase Project. You can copy and paste the config that we get somewhere. We'll be using it later.
So now we have a Project Setup let's also now quickly enable Authentication. Check out this video to learn how.
Now that we have completely set up a Firebase Project and enabled Google Sign-In on it, let's now go ahead and set up our Angular app.
Setting up an Angular App
Let's start by creating a new Angular App. Make sure that you're using the latest version of Angular CLI for this.
Install the latest version of Angular CLI using:
npm i -g @angular/cli@latest

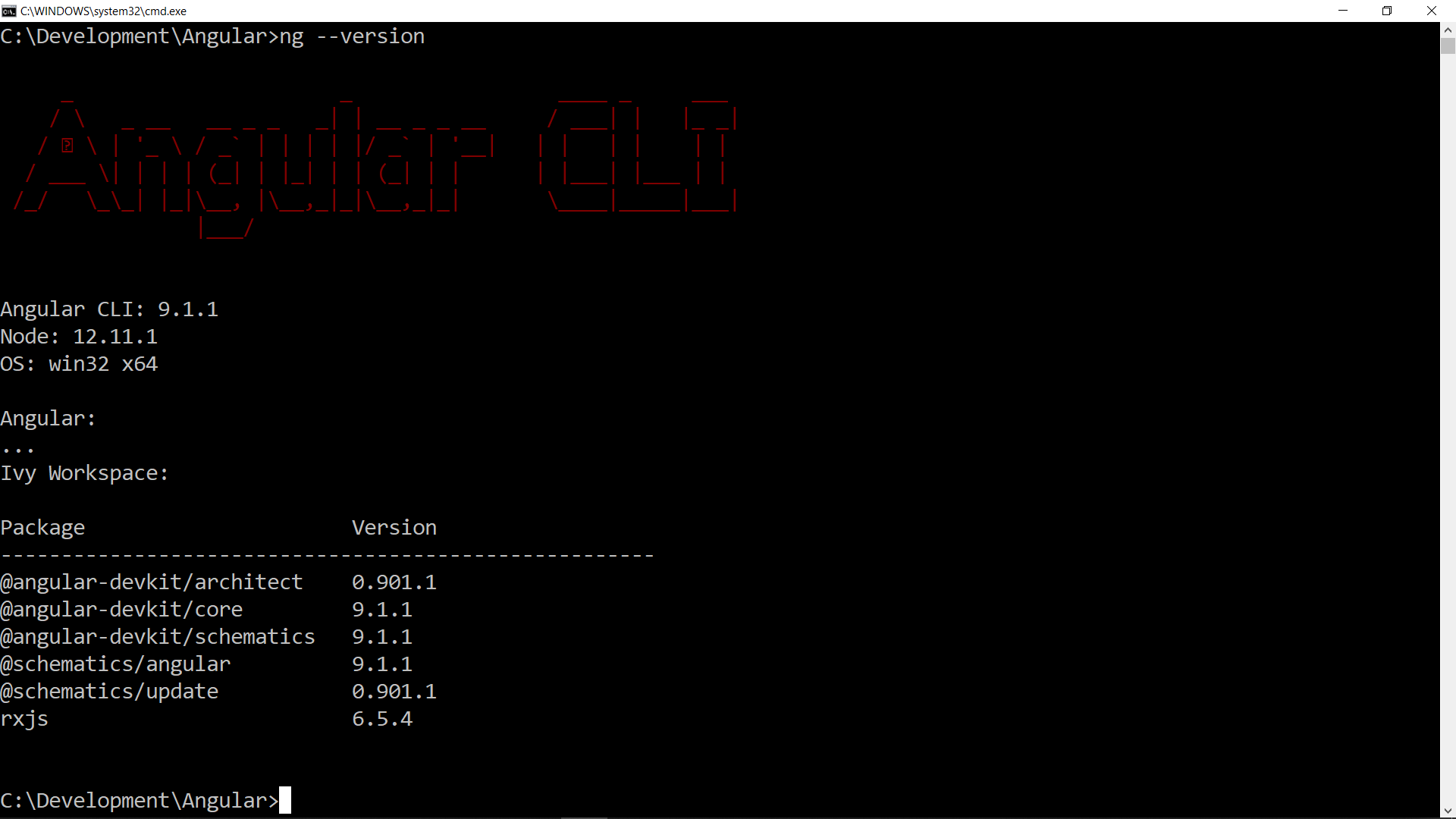

Once it installs, you can verify the version that you have by running
Sweet! Now let's create a new Angular project by running:
ng new KittyGram
Let's navigate to the Project folder that just got created by doing:
cd KittyGram(on Windows)
Alright! Now. We can clearly see from the Project Overview section video that we'll be using Angular Material. So let's set up our Angular App to use Angular Material.
Set up AngularMaterial
Let's set up
@angular/material using the following command:
ng add @angular/material

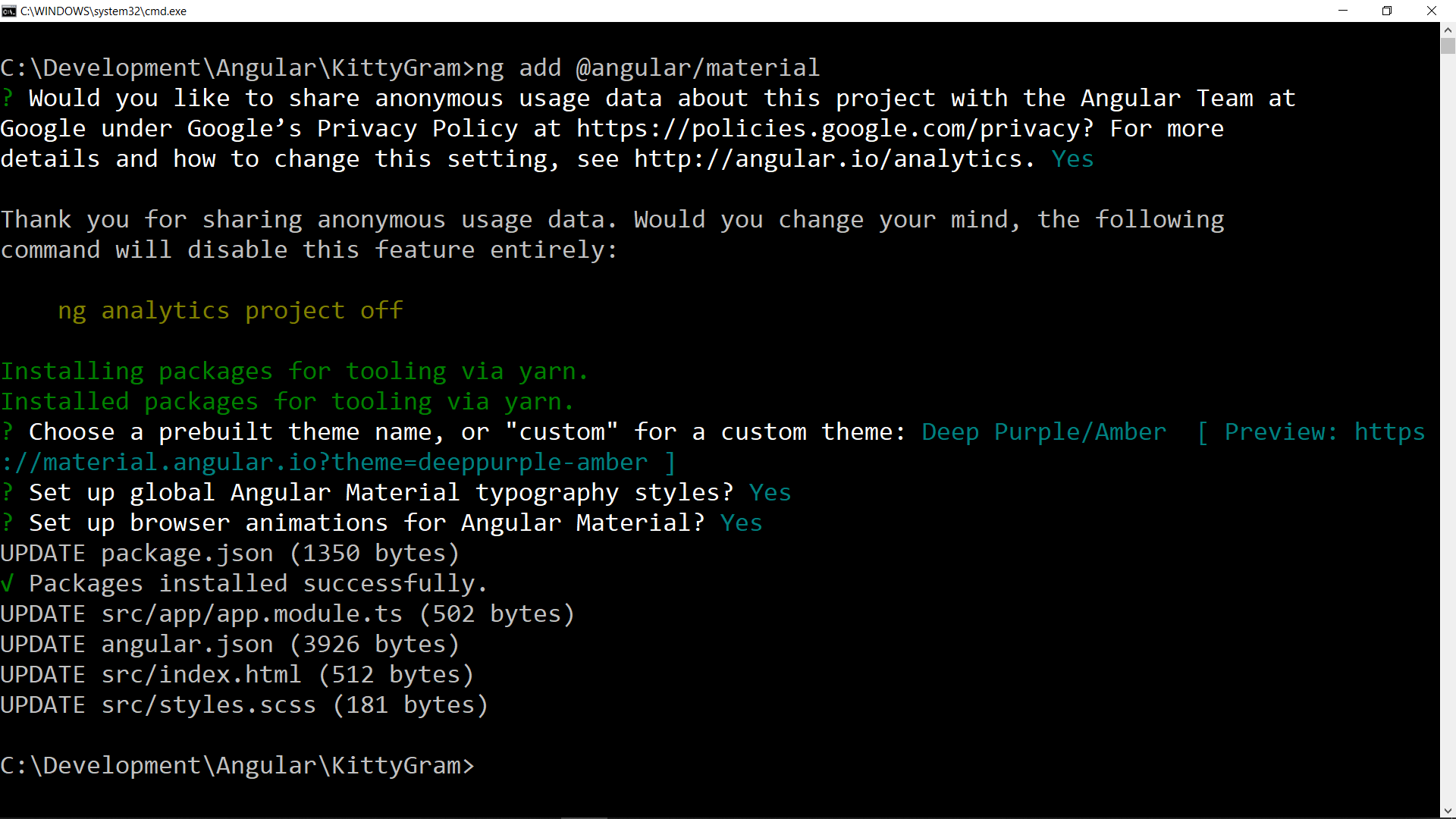

It might ask you things like the theme you want to use, whether to set-up typography and animations or not. Just answer as per the screenshot below.
Once that's done, I'll just refactor the code a bit to suit the style that I like to generally use. It's opinionated BTW, and you don't really have to do this.
Migrate Theme paths from
I don't really like when
angular.json is polluted with CSS files considering that we already have a
styles.scss file. So we can just import these CSS files in.
Search for the
angular.json and remove those URLs from there. Remove this URL:
You should be able to find two occurrences of this URL before the refactor. After the refactor, the
styles array in your
angular.json should look like this:
Now move this URL to
styles.scss. After the change your
styles.scss should look something like this:
We've already covered this in one of the past articles. So I won't go into much detail on this. Just one thing I'll do is export the
BrowserAnimationsModule as well from here.
AppMaterialModule would look something like this:
Next step would be to setup
We need to use Firebase in our Angular App to enable Login. Angular has an official Firebase SDK called
@angular/fire that we can use for this. So let's do that next. Set up
@angular/fire using this command:
ng add @angular/fire
It might ask you things like permissions to collect usage data for analytics, cli-usage, and error reporting information, etc. Apart from that, it might also ask you to paste in your Authorization code for which, it would open up a pop-up screen for you to log in to your Gmail account which you used to register to Firebase.
Then depending on whether you're able to paste in the auth-code successfully or not, it might also ask you to run
firebase login --reauth to do that for you.

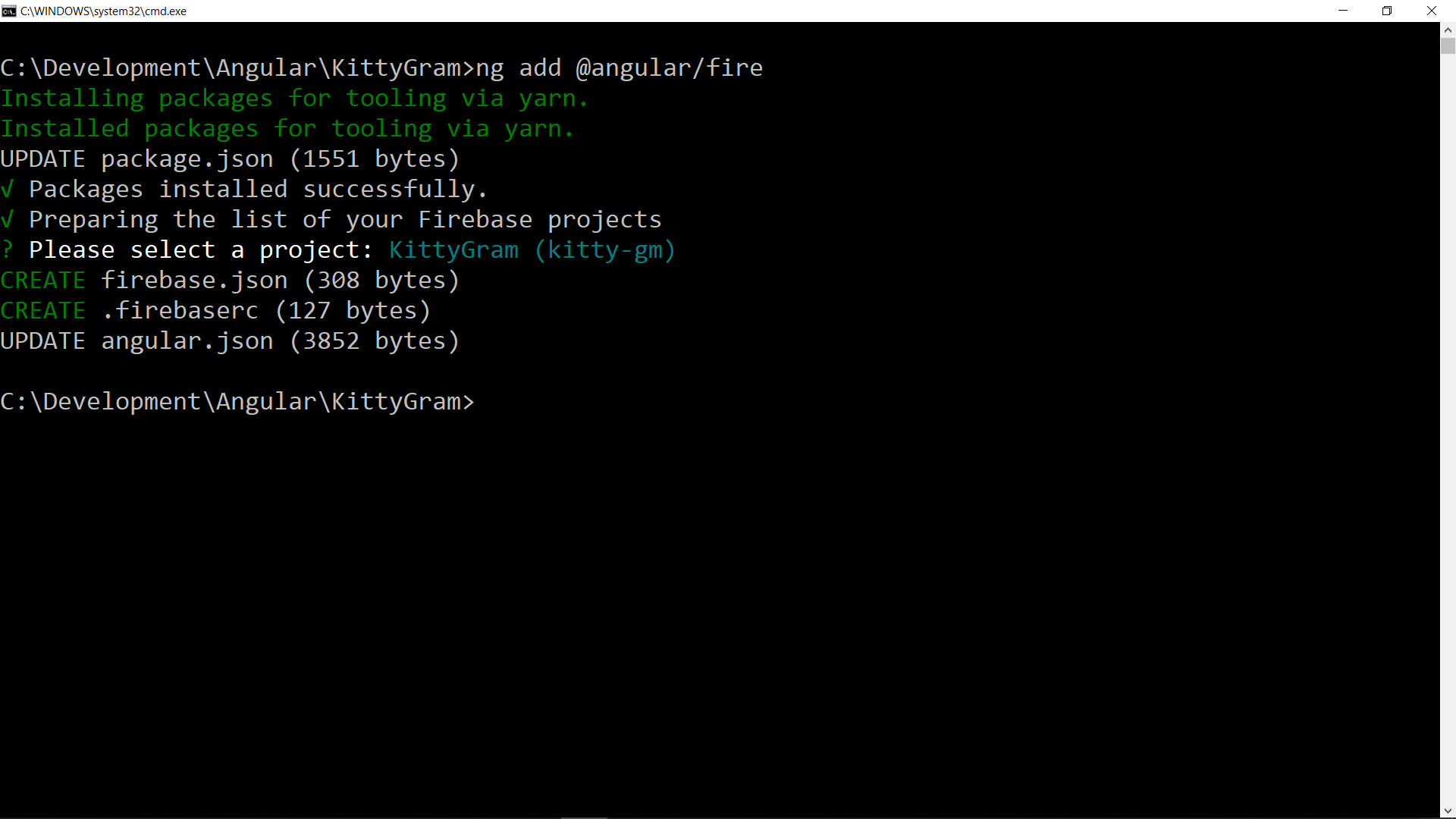

In a successful scenario, it might ask you to select your Firebase App from the list of Firebase Projects that you've created on the Firebase Console. Something like this:
Once that's done, we'll add a few things here and there to make it suit the style that I like to generally use. We'll start by creating an
ng g m app-firebase to generate this module. It will be created in a folder of its own. So I'll move it out of the folder and delete the empty folder.
Now when we set up a Firebase Project, we also copied the configuration somewhere. We will need it now. Let's store that config in an object named
firebase in our
This config should be kept private and shouldn't be shared publicly.
Now in our
AppFirebaseModule, let's set-up the
AngularFire modules that we'll need for Google Sign-In.
So we'll need the
AngularFireModule which we use to initialize our Firebase Project in our Angular App. And we'll need the
AngularFireAuthModule which has all the helpers we'll need to login and logout.
We call the
initializeApp method on our
AngularFireModule and pass it the configuration stored in the
environment const. And then we can expose the
AngularFireAuthModule from here. In code, this would look something like this:
Now that we're done setting up both
AngularFire, we can now import both
AppMaterialModule module in our
Implementing the Angular App
Implementing the Angular App is pretty straightforward. For the scope of this article, we'll need four components:
HeaderComponentthat would be our Primary Navbar. This will have buttons to log in, create a post, and show the user's profile card. These buttons would be displayed conditionally based on whether the user is logged in or not.
- The Profile Card Component, that will have some details about the user and a button to logout.
/feedroute and a similar
Let's create them using the following command:
ng g c components/create --module=app && ng g c components/feed --module=app && ng g c components/profile-card --module=app && ng g c components/header --module=app
This command will create these 4 components for us in a folder named
We just need placeholder images for
FeedComponent. I downloaded these images from Undraw by Katerina Limpitsouni. We can store them in the
assets folder and link them in the Component Templates for:
Before we implement the remaining two Components, we need a way to make the user login and logout.
AngularFire makes it really easy. It has an
AngularFireAuthModule module that exposes the
AngularFireAuth service that we can inject as a dependency. We can then call methods on it to login and logout.
Apart from that, this service also exposes an
authState Observable that has the state data related to the currently logged-in user. So we can implement a service that exposes methods to help us login and logout, and the
user$ Observable. Something as simple as this:
The implementation here is pretty straight forward. Please feel free to comment below if something here didn't make sense.
Great. Now we have a service that we can inject as a dependency in our
HeaderComponent will be leveraging these methods and the
user$ Observable to show the options on the navbar accordingly. We'll also be
subscribe ing to the Observables returned from the
logout methods to show some alert as snackbars.
And since we're doing that, we'll be using the
take operator to do it so that we don't have to
The implementation is also pretty straightforward. We also explicitly navigate the user to the
/feed route once the user logs out.
In a real project, I would also move the snack bar messages to a const file.
For the template, if the user is logged-in, we'll show the
ProfileCardComponent and the Create icon. Else we'll show the user a Login Icon.
As you can clearly see, we're using the
ProfileCardComponent as a child component. This is a presentation component that accepts a
user as an
@Input property and emits an event when the user clicks the logout button as the
So this is how our
ProfileCardComponent would look like:
And the template would look something like this:
Now we have all the modules, components, and the service in place. Let's bring it all together via routing.
Bringing it all together with Routing
So for this, we'll need to set up routing by configuring our
AppRoutingModule. We already know that we have two routes:
/feedroute would navigate the user to the
/createroute would navigate the user to the
/create route shouldn't be accessible by unauthorized users. In a world without
AngularFire, we'd implement a
CanActivate Guard to do this. But thanks to
@angular/fire, we have an
AngularFireAuthGuard guard that we can configure with the
redirectUnauthorizedTo helper from it. Configuring this will allow us to tell Angular where to navigate unauthorized users to.
All that in code would look something like this:
And that's it. Our Angular app is now ready with google sign-in and routing.
You can find source-code of the project on GitHub.
KittyGram has a lot of features. And this is just one piece of the whole puzzle. All such greatness has humble beginnings like the one that we just build. In the next article, we'll implement the
CreateComponent as a Reactive Form. We'll also implement Firebase Storage in it so that we could upload the images to a Firebase Storage Bucket. Stay tuned for that. I'll update this article once Martina finishes writing it.
And that brings us to the end of this article. Thanks for sticking around. I hope you liked it. A big shout-out to Martina Kraus for proofreading this and collaborating with me on this project. I'm also really grateful to Akhil and Rajat for proofreading this article and providing constructive feedback to make it better.
This article was originally published by me under the Angular Publication on DEV.TO
